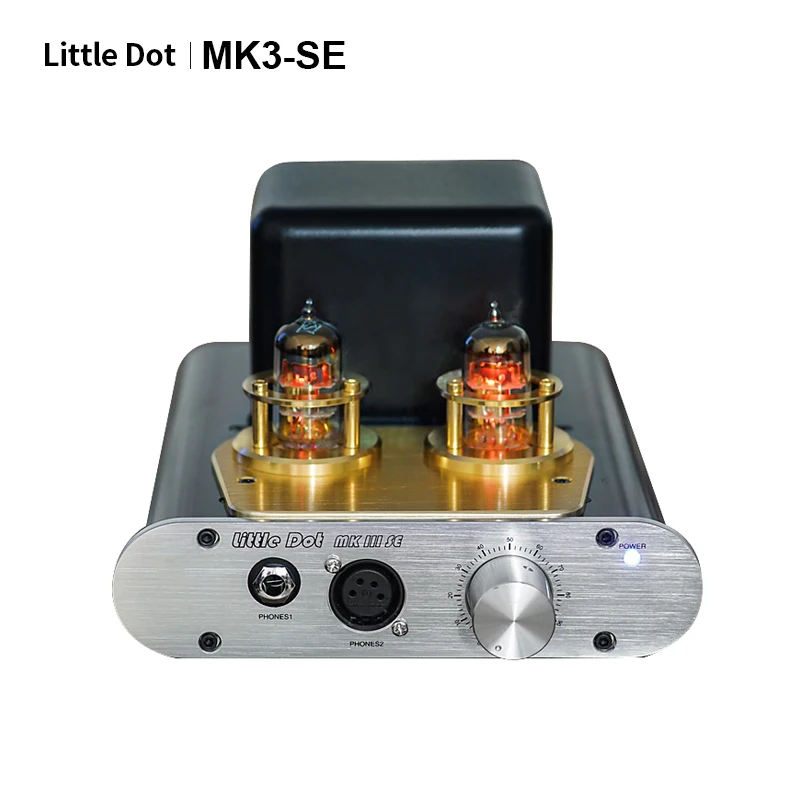

Little Dot MK3 SE Class A fully balanced headphone amplifier 6.35mm 6N11 Tube Transistor Balance amplifier
This machine is a tube-transistor hybrid, fully balanced amp.
The front stage tube adopts 6N11 (6922/ECC88, etc.).
The transistor part adopts a fully discrete, fully symmetrical, pure Class A headphone amplifier circuit.
This machine is fully balanced and unbalanced compatible, with XLR balanced input and output, as well as RCA input and 6.35mm output.
The case uses a very delicate secondary oxidation process and has a gold-plated tube frame.
technical parameter:
1. Input terminal:
Balance: XLR 3p x2
Unbalanced: RCA x2
2. Output terminal:
Balance: XLR 4p x1
Unbalanced: 6.35mm x1
3. Input impedance: 10 K ohm
4. Distortion: 0.001% (output: 2V rms 1000Hz)
5. S/N ratio: 95dB
6. Frequency response: 5Hz-100KHz (-1dB)
7. Output power:
2.5W (32 ohm)
1.8W (120 ohm)
0.8W (300 ohm)
8. Adaptation headphone impedance: 32 ohm ~ 600 ohm
9. Magnification:
Gain = HIGH: 9
Gain = LOW: 4.5
10. Power consumption: 30 VA
11. Volume: 245x165x120(H)mm
12. Weight: 3 Kg
